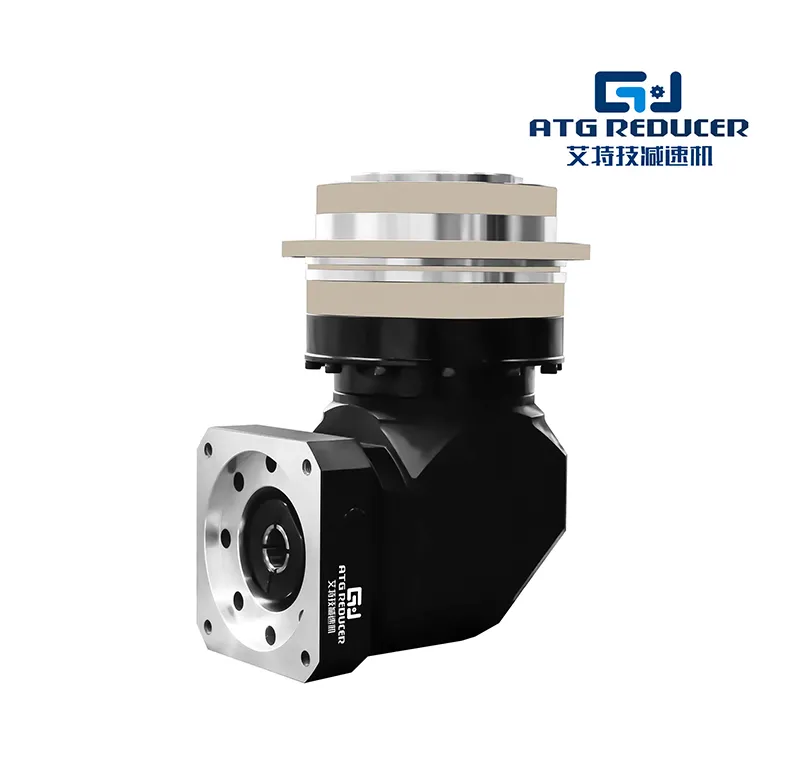

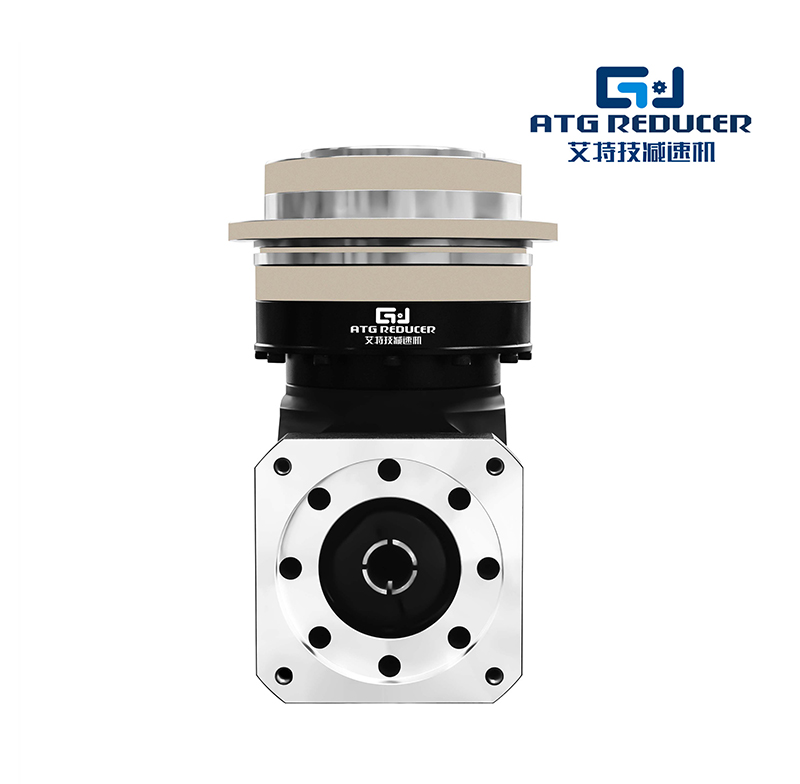

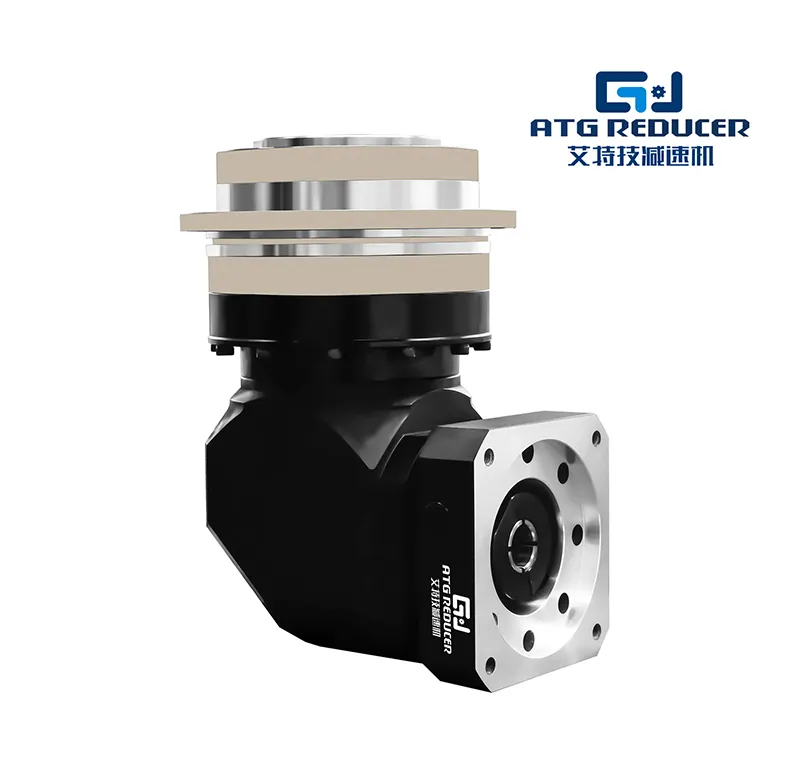

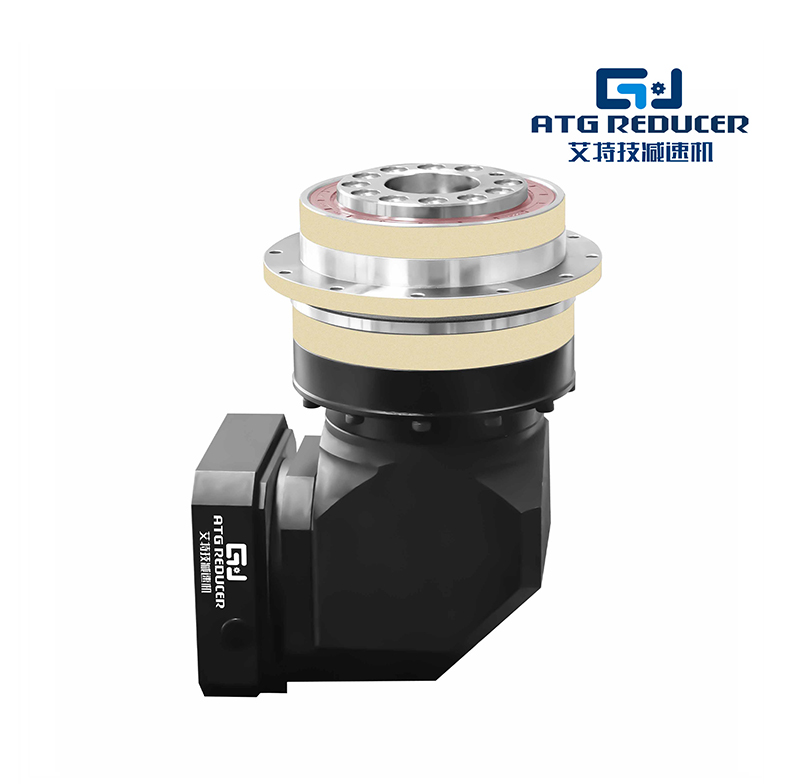

PGFR Two-Stage Planetary Gear Reducer for High Precision Industrial Automation
At Qiandeyi Transmission Technology (Suzhou) Co., Ltd., we specialize in designing and manufacturing Precision Transmission Components for intelligent manufacturing equipment. The PGFR Two-Stage Planetary Gear Reducer is one of our key products developed for customers who require high accuracy, strong torque output, stable operation, and long service life in demanding industrial environments.
Since our establishment in 2013, we have focused on providing complete intelligent drive solutions by integrating research and development, manufacturing, sales, and technical support. With more than 20 years of industry experience from our core production team, we understand that a reliable gearbox is not just a mechanical component. It is a key part that directly affects the performance, efficiency, and stability of an entire machine.
Our PGFR series planetary Gear Reducer adopts an advanced two-stage planetary gear structure. By using multiple planetary gears to share the load, the gearbox achieves excellent torque density, high transmission efficiency, low backlash, and smooth operation. It is widely used in industrial robots, CNC machine tools, automated production lines, lithium battery equipment, semiconductor machines, packaging systems, logistics equipment, and other precision automation industries.
We carefully control every production step, from material selection and precision machining to assembly and final inspection. Our goal is simple: provide customers with a dependable precision two stage Planetary Gearbox that can perform well in real working conditions.
1. What Is PGFR Two-Stage Planetary Gear Reducer?
The PGFR Two-Stage Planetary Gear Reducer is a high-performance transmission device designed to reduce motor speed while increasing output torque through a two-stage planetary gear mechanism.
In industrial equipment, motors usually rotate at high speed but cannot directly provide the torque and accuracy required by machines. A planetary gearbox solves this problem by controlling speed reduction and improving torque output.
Compared with a single-stage planetary reducer, a two-stage planetary gearbox uses two connected planetary gear sets. This design allows a higher reduction ratio while maintaining a compact size and stable transmission performance.
The main internal components include:
Input shaft
Sun gears
Planet gears
Ring gears
Planet carriers
Output shaft
When the motor drives the input shaft, the first planetary stage transfers power to the second stage. The two-stage structure gradually reduces speed and increases torque, allowing the gearbox to handle heavier loads and more complex operating conditions.
Why We Design Two-Stage Planetary Structure
During our cooperation with automation equipment manufacturers, we found that many applications require more torque without increasing equipment size.
A traditional gearbox may become larger when higher torque is needed. However, the planetary structure distributes force through multiple gears working together, which provides stronger load capacity in a smaller housing.
The PGFR series is designed for applications where customers need:
Higher output torque
Better positioning accuracy
Stable continuous operation
Compact installation space
2. Working Principle of PGFR Two-Stage Planetary Gear Reducer
The working principle of the PGFR planetary gearbox is based on the cooperation between the sun gear, planet gears, and ring gear.
The motor connects with the input shaft and drives the first-stage sun gear. The sun gear transfers power to several planet gears surrounding it. These planet gears rotate inside the ring gear and drive the planet carrier.
The output of the first stage then becomes the input of the second planetary stage. Through this two-step reduction process, the gearbox achieves higher reduction ratios and stronger torque output.
Main Advantages of Two-Stage Planetary Transmission
Higher torque capacity: Multiple gears share the working load.
Better stability: Balanced gear arrangement reduces vibration.
Compact structure: High performance in limited installation space.
High efficiency: Reduced energy loss during power transmission.
Low backlash: Improved positioning accuracy for precision equipment.
| Comparison Item | Traditional Gear Reducer | PGFR Two-Stage Planetary Gear Reducer |
Transmission Structure | Single gear transmission system | Two-stage planetary gear system |
Torque Density | Standard torque output | Higher torque in compact design |
Load Distribution | Mainly concentrated on fewer teeth | Shared by multiple planetary gears |
Precision Application | General mechanical equipment | Robotics and automation systems |
Installation Space | Usually larger for high torque | Compact and space-saving |
Source: Qiandeyi engineering analysis based on planetary transmission structure characteristics and industrial application experience.
3. Main Features of PGFR Two-Stage Planetary Gear Reducer
High Precision Motion Control
Modern automation equipment requires accurate movement. A small positioning error may affect production quality, especially in robotics, CNC machining, and semiconductor manufacturing.
The PGFR planetary reducer uses precision manufacturing processes to achieve reliable movement control. Its stable transmission performance helps machines maintain accuracy during repeated operations.
High Torque Output Capability
One of the biggest advantages of the high torque planetary gear reducer design is its ability to handle heavy loads while keeping a compact size.
Because several planet gears share the force, the internal components experience lower stress. This improves durability and allows the gearbox to work under demanding conditions.
Low Backlash Performance
Backlash is an important factor for precision transmission systems.
Excessive clearance between gears may cause positioning errors. The PGFR series is designed with optimized gear matching and accurate manufacturing control to reduce unnecessary movement.
This makes it suitable for:
High Transmission Efficiency
Energy efficiency is becoming increasingly important in industrial equipment.
The planetary structure provides efficient power transfer, helping reduce energy loss while maintaining strong output performance.
Compact Mechanical Design
Machine builders often need smaller equipment with more functions.
The compact design of the PGFR Two-Stage Planetary Gear Reducer allows easier integration with servo motors and automation systems.
At Qiandeyi, we focus on creating products that solve real industrial problems. We do not only manufacture gearboxes; we develop transmission solutions based on customer applications.
Professional Manufacturing Experience
Our production team has extensive experience in planetary gearbox manufacturing. We understand how every detail, including gear accuracy, assembly tolerance, and material quality, influences final performance.
Reliable Servo Motor Compatibility
The PGFR series is designed to work with various servo motor systems.
It is suitable for equipment requiring:
Fast response
Accurate positioning
Stable torque output
Continuous operation
Stable Performance Under Industrial Conditions
Industrial environments can be challenging. Machines may operate for long hours under changing loads.
Through careful design and quality control, our planetary gearbox provides reliable performance for demanding applications.
| Technical Feature | Customer Benefit |
Two-Stage Planetary Design | Higher reduction ratio and torque output |
Precision Gear Processing | Better accuracy and smoother operation |
Low Backlash Structure | Improved positioning repeatability |
Compact Housing Design | Easy integration into equipment |
Strict Quality Testing | Reliable product performance |
Source: Qiandeyi internal product design standards and manufacturing specifications.
5. Applications of PGFR Two-Stage Planetary Gear Reducer in Industrial Automation
Over the years, we have worked with customers from many industries and learned that each machine has different transmission requirements. Some customers need extremely accurate positioning, some need stronger torque output, and others need equipment that can operate continuously without interruption.
The PGFR Two-Stage Planetary Gear Reducer is designed to meet these different needs. With its high torque capacity, compact structure, low backlash, and stable operation, it has become a reliable transmission solution for many precision industries.
Industrial Robots and Robotic Systems
Industrial robots are one of the most demanding applications for Precision Gear Reducers. Every movement of a robotic arm requires accurate control and smooth operation.
A robot may repeat the same movement thousands or even millions of times during its working life. Therefore, the gearbox must maintain stable accuracy and mechanical strength.
Our PGFR Precision Planetary Gearbox is widely used in:
The low backlash design helps improve positioning accuracy, while the high torque output supports reliable robot movement.
CNC Machine Tools
CNC machine tools require precise and stable transmission because machining accuracy directly affects the final product quality.
The PGFR planetary reducer can be used in:
By providing smooth speed reduction and accurate torque transmission, the gearbox helps improve machining stability and reduce vibration during operation.
Automated Production Lines
Modern factories are moving toward intelligent manufacturing. Automated production lines require components that can work reliably for long periods.
Our PGFR Two-Stage Planetary Gear Reducer is suitable for:
Automatic assembly equipment
Material handling systems
Inspection machines
Sorting equipment
Industrial positioning systems
The compact structure allows machine designers to save installation space while maintaining strong performance.
Lithium Battery and New Energy Equipment
The new energy industry has strict requirements for production accuracy and equipment reliability.
Battery manufacturing processes often involve high-speed movement, repeated positioning, and continuous operation.
The PGFR series supports lithium battery equipment applications such as:
Battery assembly machines
Inspection equipment
Automatic coating systems
Production positioning devices
Semiconductor Manufacturing Equipment
Semiconductor equipment requires very high precision because even small movement errors can influence production results.
Our planetary gearbox provides:
Stable transmission accuracy
Low vibration operation
Reliable positioning performance
Long-term working stability
Packaging and Printing Machinery
Packaging and printing machines usually operate at high speed. The transmission system must respond quickly and maintain stable performance.
The PGFR Two-Stage Planetary Gear Reducer is used in:
Medical Equipment and Precision Devices
Medical equipment requires reliable and precise movement because safety and accuracy are important.
The compact planetary gearbox design makes it suitable for:
Medical inspection equipment
Laboratory automation devices
Precision positioning systems
| Application Field | Equipment Example | Main Requirement | PGFR Advantage |
Robotics | Robot joints | High positioning accuracy | Low backlash and high torque |
CNC Manufacturing | Rotary tables | Stable precision | Smooth transmission |
Battery Industry | Assembly equipment | Continuous operation | Strong durability |
Semiconductor | Inspection machines | Fine motion control | Stable accuracy |
Packaging | Automatic machines | Fast response | Reliable performance |
Source: Qiandeyi customer application experience in industrial automation, intelligent manufacturing, and precision equipment industries.
6. Manufacturing Process of PGFR Two-Stage Planetary Gear Reducer
A reliable planetary gearbox depends not only on product design but also on manufacturing accuracy. Small differences during production can affect noise, efficiency, backlash, and service life.
At Qiandeyi, we control the entire manufacturing process to ensure every PGFR Two-Stage Planetary Gear Reducer meets strict quality requirements.
Raw Material Selection and Inspection
The first step in manufacturing is selecting suitable materials.
We inspect incoming materials before production to ensure they meet our quality standards.
Reliable materials help improve:
Mechanical strength
Wear resistance
Gear durability
Long-term reliability
Precision Gear Machining
The gear system is the core of every planetary reducer.
Our production process focuses on controlling:
Precision machining helps the gearbox achieve smoother operation and lower operating noise.
Heat Treatment Process
Heat treatment improves the hardness and strength of gear components.
Proper heat treatment allows gears to handle repeated loads and maintain performance during long working cycles.
Precision Assembly Procedure
Assembly accuracy directly affects gearbox performance.
Our technicians carefully install and adjust:
Planet gears
Gear carriers
Bearings
Output shafts
Correct assembly ensures smooth operation and reliable transmission.
Complete Performance Testing
Before shipment, every PGFR planetary gearbox receives detailed inspection.
Our testing includes:
| Manufacturing Stage | Quality Focus | Customer Benefit |
Material Inspection | Reliable raw materials | Improved product durability |
Gear Processing | Precision manufacturing | Higher transmission accuracy |
Assembly | Correct component matching | Stable operation |
Final Testing | Performance verification | Reliable delivery quality |
Source: Qiandeyi manufacturing process and internal quality control procedures.
7. Production Time, Packaging, and Global Delivery
For industrial customers, reliable delivery is just as important as product quality. We understand that a delayed gearbox may affect the customer's entire production schedule.
Therefore, we focus on efficient production planning while maintaining strict quality standards.
Production Lead Time
For standard PGFR Two-Stage Planetary Gear Reducer models:
For customized planetary gearbox solutions:
Professional Export Packaging
Precision transmission products require careful protection during transportation.
Our packaging solutions include:
Shock-resistant foam protection
Individual carton packaging
Export wooden cases for bulk orders
Reinforced pallets when required
Flexible Shipping Options
According to customer requirements, we provide:
Express delivery
Air transportation
Sea transportation
Rail transportation
With export experience covering more than 30 countries and regions, we continue to provide reliable planetary gearbox solutions for global customers.
8. Why Choose Qiandeyi PGFR Two-Stage Planetary Gear Reducer?
When customers choose a planetary gearbox supplier, they are not only choosing a product. They are choosing a long-term partner who can provide stable quality, technical support, and reliable delivery.
At Qiandeyi Transmission Technology (Suzhou) Co., Ltd., we focus on every detail of the transmission system. From product design to after-sales service, we always keep practical customer needs in mind.
Professional Experience in Precision Transmission
Since 2013, we have been dedicated to the research, development, manufacturing, and application of intelligent transmission components.
Our production team has more than 20 years of industry experience in Precision Gearbox manufacturing. This experience helps us understand different working conditions and provide suitable solutions for various industries.
Whether customers need a standard PGFR Two-Stage Planetary Gear Reducer or a customized planetary gearbox, we can provide technical suggestions based on actual machine requirements.
Strict Quality Management System
Quality is the foundation of our products.
We have obtained:
ISO9001 Quality Management System Certification
ISO14001 Environmental Management System Certification
ISO45001 Occupational Health and Safety Management System Certification
These certifications reflect our commitment to organized production, stable manufacturing processes, and responsible business operation.
Advanced Manufacturing Equipment
Precision transmission products require precise manufacturing equipment.
We use professional production machines and high-precision inspection instruments to control every important production step.
Our manufacturing capability covers:
Customized Solutions for Different Applications
Every machine has different requirements.
Some applications need higher torque, while others need lower backlash or a smaller installation size.
Our engineering team can provide customized solutions according to:
This allows customers to receive a gearbox solution that fits their equipment better.
Global Export Experience
Our products are used in automation equipment markets worldwide, with customers in more than 30 countries.
We understand international customers' expectations for:
Stable product quality
Clear technical communication
Reliable delivery schedules
Professional export service
| Qiandeyi Advantage | What Customers Receive |
20+ Years Industry Experience | Professional transmission knowledge and practical solutions |
Strict Quality Control | Reliable gearbox performance |
Advanced Manufacturing Process | High precision and stable operation |
Customization Capability | Solutions for different equipment requirements |
Global Export Service | Convenient international cooperation |
Source: Qiandeyi company manufacturing capability and quality management information.
9. Frequently Asked Questions About PGFR Two-Stage Planetary Gear Reducer
Q1: What is the main advantage of a PGFR Two-Stage Planetary Gear Reducer?
The main advantage is the combination of high torque output, compact structure, and stable precision performance. The two-stage planetary design allows the gearbox to achieve higher reduction ratios while maintaining good efficiency and accuracy.
Q2: Where can the PGFR planetary gearbox be used?
The PGFR series is widely used in industrial robots, CNC machines, automation production lines, lithium battery equipment, semiconductor equipment, packaging machinery, medical equipment, and other precision industries.
Q3: What motors can be connected with this planetary reducer?
The PGFR Two-Stage Planetary Gear Reducer can be matched with different servo motors and drive systems according to customer requirements. Our engineers can help select suitable connection dimensions and specifications.
Q4: How long is the production time?
For standard models, the normal production cycle is usually 7–15 days. Customized models may require around 15–30 days depending on product specifications, order quantity, and technical requirements.
Q5: How do you ensure product quality before delivery?
Before shipment, every gearbox goes through multiple inspections, including:
Accuracy testing
Backlash inspection
Noise testing
Vibration testing
Temperature rise testing
Load testing
Yes. We provide customized solutions based on customers' equipment requirements, including dimensions, transmission ratio, torque requirements, and installation conditions.
Q7: What payment and shipping methods do you support?
We support T/T bank transfer. For large orders, payment methods such as L/C can be discussed.
Shipping methods include express delivery, air freight, sea freight, and railway transportation according to customer needs.
10. Reliable PGFR Two-Stage Planetary Gear Reducer Supplier for Global Automation Solutions
The development of intelligent manufacturing requires transmission components that can provide accuracy, efficiency, and reliability.
At Qiandeyi, we continue improving our technology and manufacturing process to provide better solutions for automation equipment manufacturers around the world.
Our PGFR Two-Stage Planetary Gear Reducer combines advanced planetary transmission technology, strict quality control, and practical industrial experience. It is designed for customers who need a reliable gearbox for demanding applications.
From industrial robots and CNC machines to new energy equipment and automated production systems, we are committed to helping customers achieve smoother, faster, and more accurate motion control.
If you are looking for a professional PGFR Two-Stage Planetary Gear Reducer Manufacturer, a reliable precision planetary gearbox supplier, or a customized transmission solution partner, Qiandeyi is ready to support your project with professional technology and dependable service.
Product Summary
| Product Name | PGFR Two-Stage Planetary Gear Reducer |
| Main Features | High precision, high torque, low backlash, compact design, stable operation |
| Main Applications | Robotics, CNC machines, automation equipment, semiconductor, lithium battery, packaging machinery |
| Production Time | 7–15 days for standard products, 15–30 days for customized products |
| Quality Inspection | Accuracy, backlash, noise, vibration, temperature, and load testing |
| Shipping Options | Express, air freight, sea freight, railway transportation |
Source: Qiandeyi Transmission Technology product information and manufacturing standards.
Español
Pусский
Deutsch
Tiếng Việt
Phone
